Mooer Meta FX Effects Pedal

Effect Pedal for Electric Guitar

• Effects pedal based on the X Algorithm platform with interchangeable REVERB, DELAY and MOD firmware
• Transforms the pedal into either a high-quality reverb, delay or modulation pedal
• Regular firmware updates featuring new effects algorithms for even more sonic possibilities
• Presets can be backed up and managed, and firmware updates installed, using the free MOOER Studio software (macOS / Windows)
• Reverb firmware offers 14 high-quality stereo reverb algorithms and 20 factory presets
• The Delay firmware offers 14 delay types and over 20 presets
• Modulation firmware offers a wide range of effects such as chorus, phaser, flanger, tremolo, rotary, vibrato and harmony, as well as numerous presets
• Highlights for creative sound design: ‘Infinite Sustain’ (infinite sustain via footswitch B), 'Tap Tempo' (sync delay and modulation speed), “Kill Dry” (removes the unprocessed signal and outputs only the processed sound, perfect for parallel set-ups and atmospheric walls of sound) and “Trail” (allows effect tails to fade out gently after the effect is deactivated (bypass))
• Stereo signal processing
• Over 40 stereo algorithms
• 100 user slots
• 24-bit audio resolution
• 44.1 kHz sampling rate
• Level / Value control for master output level or parameter adjustment whilst holding down the EDIT, TYPE or SAVE button
• Select / Menu control for selecting parameters
• Round colour display with a diameter of 3.2 cm and an RGB light ring
• Supports touch interaction for certain functions
• The Edit button opens the parameter editing interface
• The Type button brings up the selection screen for effect models
• Save button for saving settings
• Footswitch A for activating/bypassing the effect
• Footswitch B’s function depends on the firmware being used
• Inputs: 2 x 6.35 mm mono (TS) jack sockets
• Outputs: 2 x 6.35 mm mono (TS) jack sockets
• Headphone output: 3.5 mm stereo (TRS) with 32 ohms headphone impedance

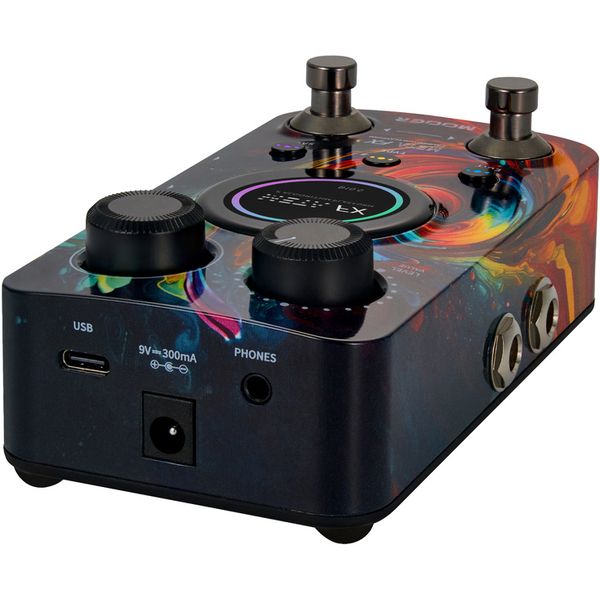

• USB-C port for connecting to a Mac or PC for preset management, firmware updates and backups
• Power supply via the included 9 V DC 300 mA adaptor, centre negative
• Dimensions: 125 x 74 x 49 mm
• Weight: 200 g
• Includes a USB Type-A to USB Type-C cable and a quick start guide
