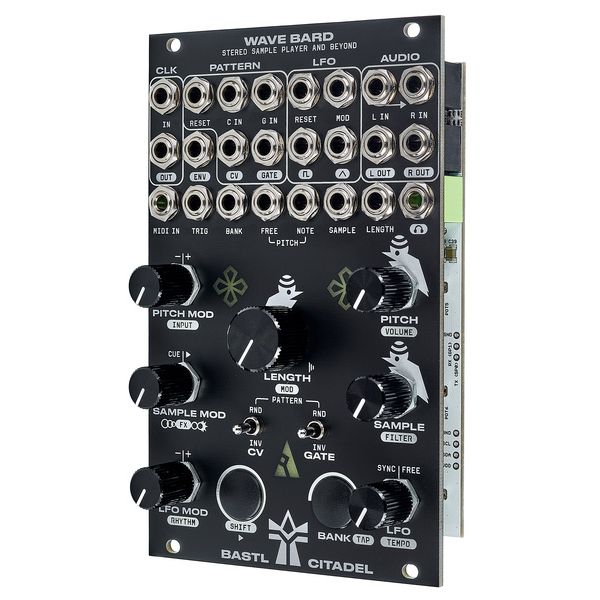

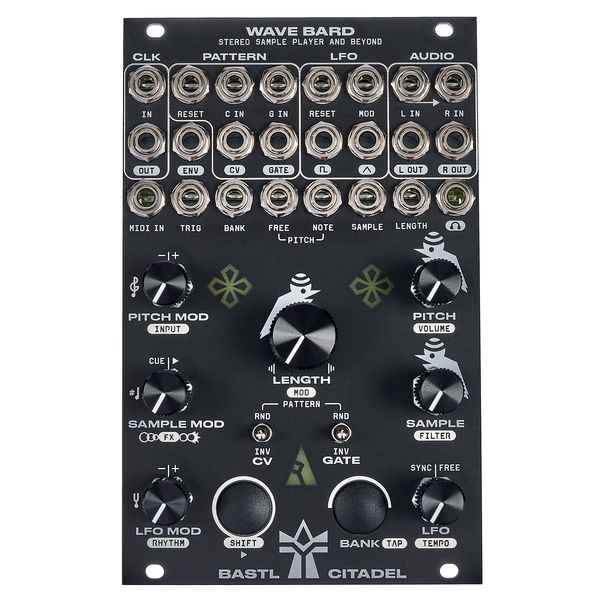

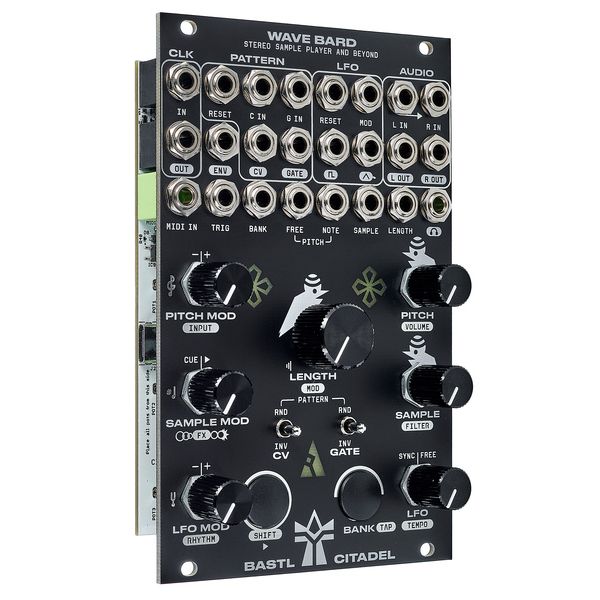

Bastl Instruments Citadel Wave Bard

Start 360°

Eurorack Module

Experimental stereo sample player
Sampling time: 89 seconds (mono), 44 seconds (stereo)
16 Bit / 44 kHz
Memory locations for up to 32 banks with 32 samples each (editable via web app)
Banks and samples can be selected via rotary controls, CV inputs, the internal pattern generator and LFO
Pitch control (+/- 2 octaves) and adjustable quantisation control for sample modulation, sample selection, sample length & sample envelope, LFO modulation and tempo
Low-pass/high-pass filter with resonance
Stereo delay or chorus/flanger effect
Pattern and gate generator
CV inputs for all parameters
Stereo line output
Stereo headphone output
Stereo line input
Sync input and output
MIDI In: 3.5 mm TRS jack, Type A
USB-C port on the rear panel for firmware updates, USB MIDI and sample import
Current consumption: 90 mA (+12V) / 20mA (-12V)
Width: 16 HP
Depth: 24 mm
