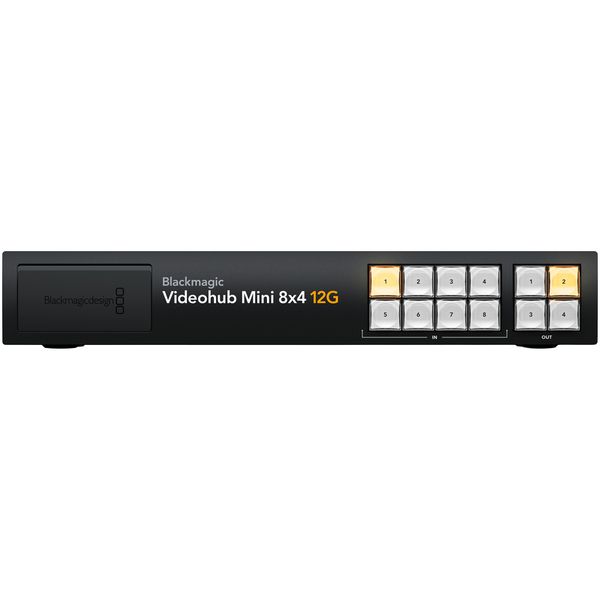

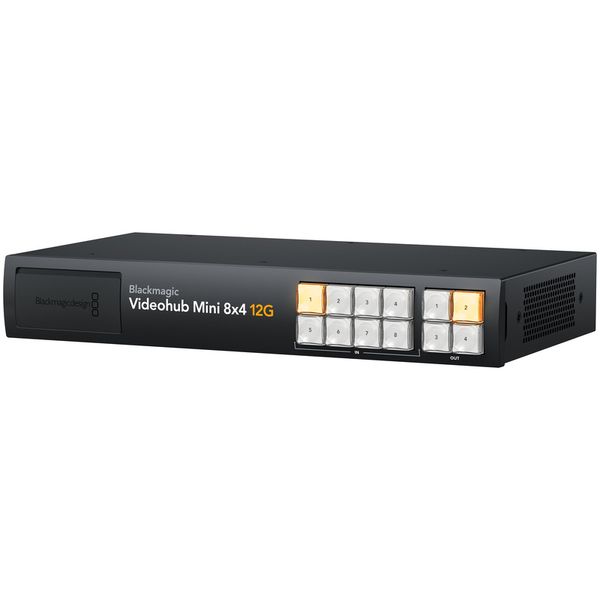

Blackmagic Design Videohub Mini 8x4 12G

Zero-Latency Router

• For simultaneous routing of any combination of SD, HD and Ultra HD video signals
• Features 8 x 12G-SDI inputs, 4 x 12G-SDI outputs and reference connections for clean switch outputs
• In addition, the crossbar has a 12G-SDI emergency connection for connecting external devices, as well as a USB-C webcam video output
• Alongside SDI reclocking and external control via Ethernet, all SDI video standards up to 2160p/60 are supported
• Power supply: 1 integrated AC power supply for 100–240 V, 50/60 Hz (IEC power cable not included), 1 x 12 V DC input with reverse polarity protection
• Current consumption: max. 23 W
• Dimensions: 280 x 46.3 x 173.3 mm
• Weight: 1.62 kg

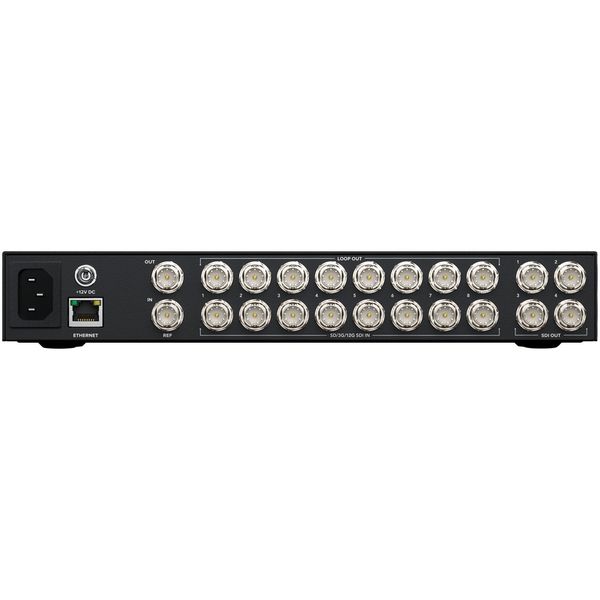

Connections:

• SDI video inputs: 8 - Input on the front panel takes precedence over input 8 on the rear panel
• SDI video outputs: 4 - Output on the front panel mirrors output on rear output 4
• SDI rates: 270 Mbit, 1.5 G, 3 G, 6 G, 12 G
• Video inputs with resync: On all 8 inputs for clean switch
• SDI resynchronisation: on all SDI outputs
• Reference inputs for Tri-Sync or Black Burst
• Reference output with termination switching for loop-through
• Webcam output: USB-C
• Ethernet: supports 10/100/1000 Base-T
• Computer interface: 1 USB-C 3.1 Gen. 1 as webcam output, for software updates and for connecting the video setup utility
