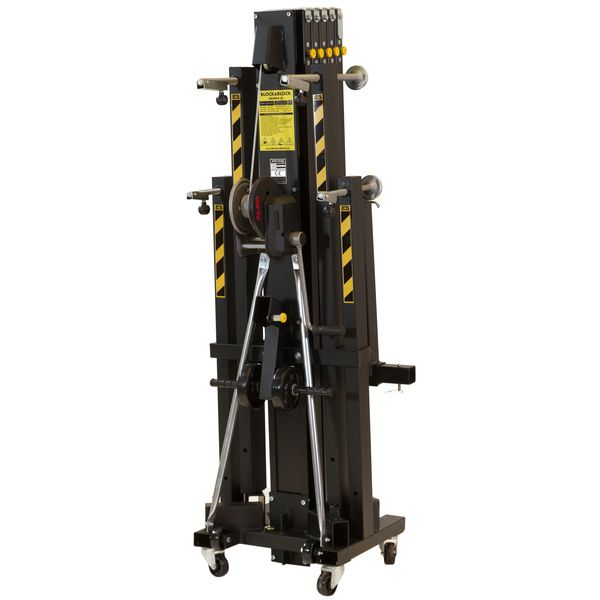

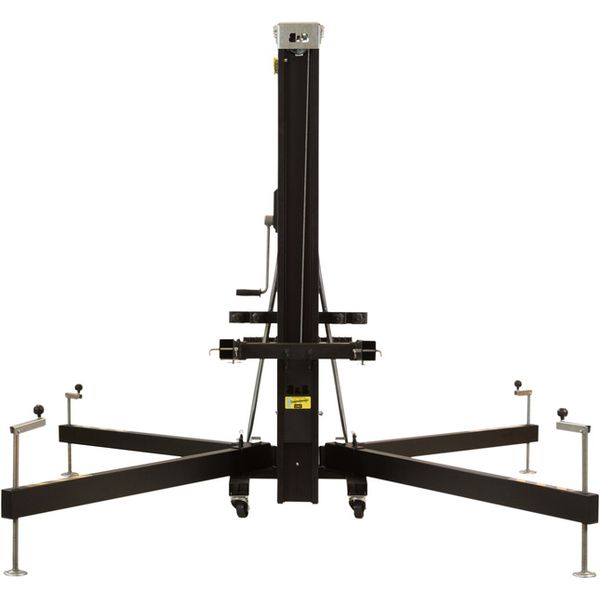

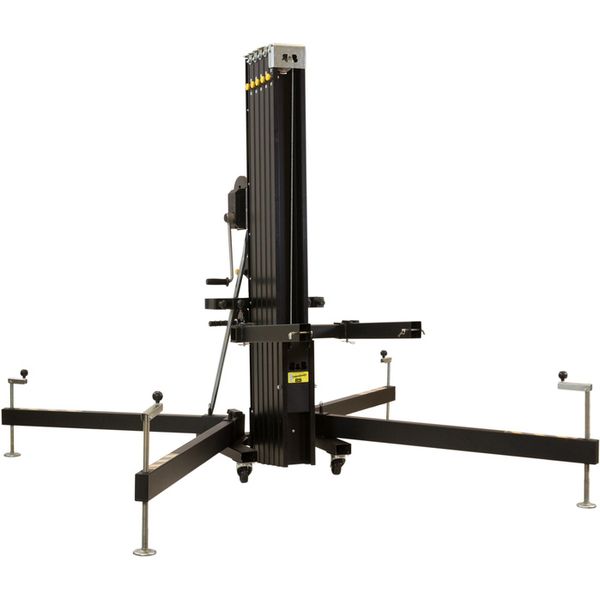

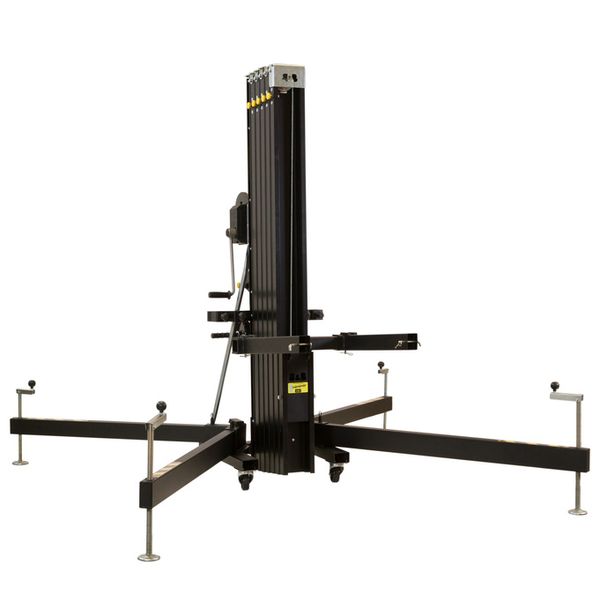

Block And Block GAMMA-60 Fork Lift 270kg 7.6m
Truss Lift
- Up to 270 kg load capacity
- Five part telescopic extension
- Safety bolts for locking the various sections at different heights
- Locking bolts in the base to secure the booms
- Stabiliser with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection thanks to epoxy coating
- Spirit level
- Earthing connection
- Castors for moving the retracted lift

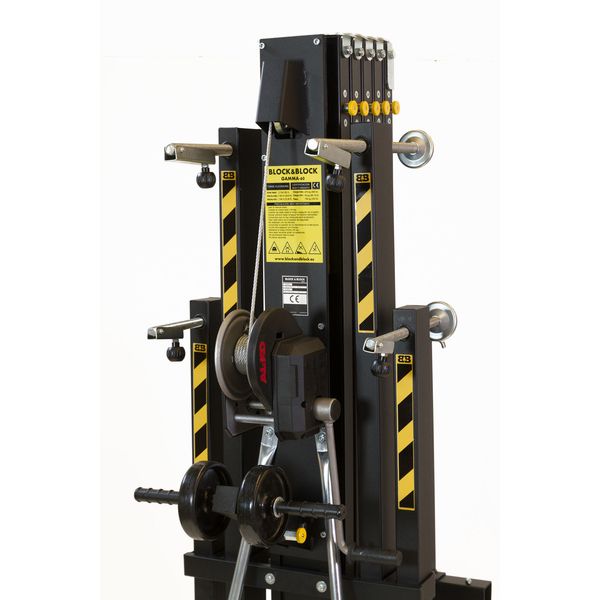

- AL-KO COMPAC 900 winch: (Maximum load capacity: 900 kg with automatic load-holding brake)
- Galvanised steel cables, type 6x19+1, manufactured in accordance with standard EN 13414-1:2004
- Material: Carbon steel profiles, type S-275-J0H, manufactured in accordance with standards EN10219, EN10305.5
- Height adjustable
- Maximum load capacity: 270 kg
- Minimum load capacity: 40 kg
- Nominal rope strength: 1770 N/mm²
- Height: max. 760 cm across 5 sections, min. 30 cm
- Steel cable: Ø 6 mm
- Material: Steel (powder-coated)
- Transport dimensions: 194 cm x 61 cm x 68 cm
- Footprint: Ø 2.1 m
- Weight: 152.0 kg
- Made in Europe
-
Numer artykułu 641735
-
Jednostka sprzedaży 1 szt.
-
Construction type Tower Lift
-
Max. Load 270,0 kg
-
Adapter/spigot type Bracket
-
max. Working Height (m) 7,6 m
