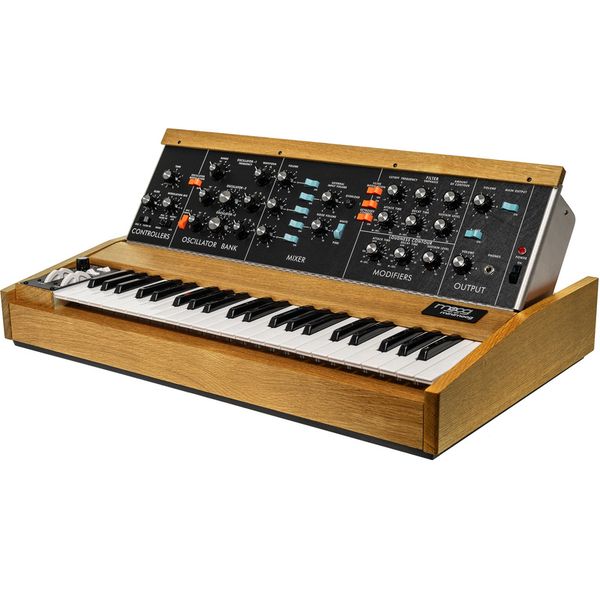

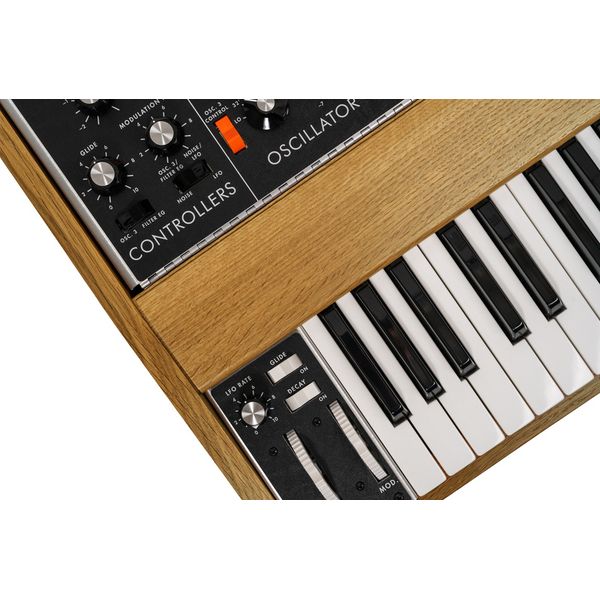

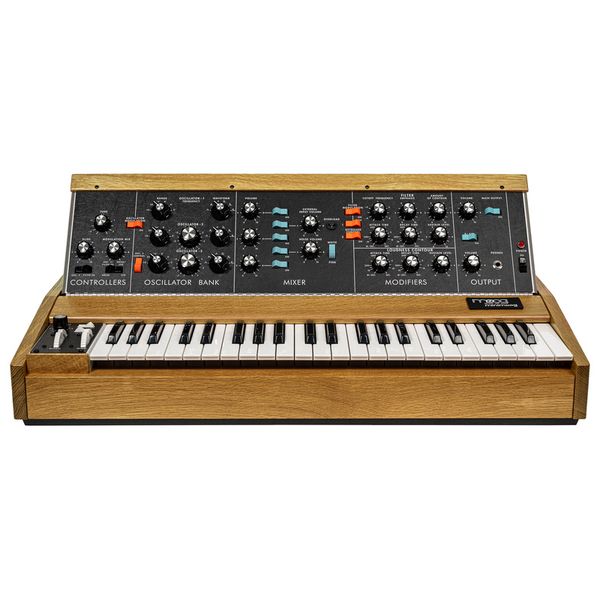

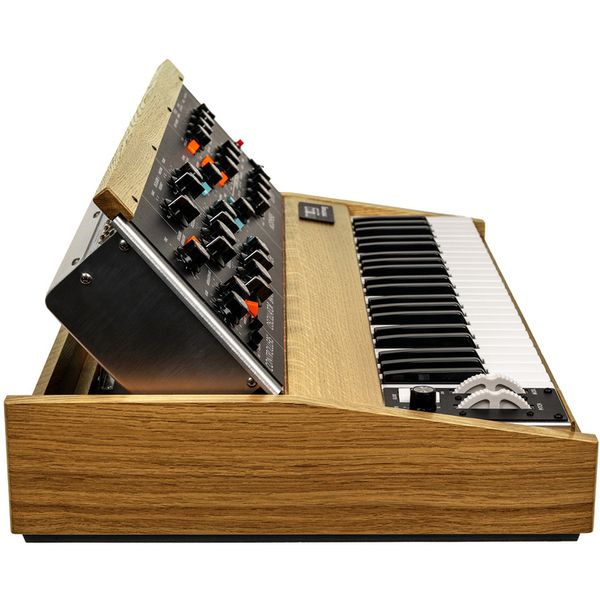

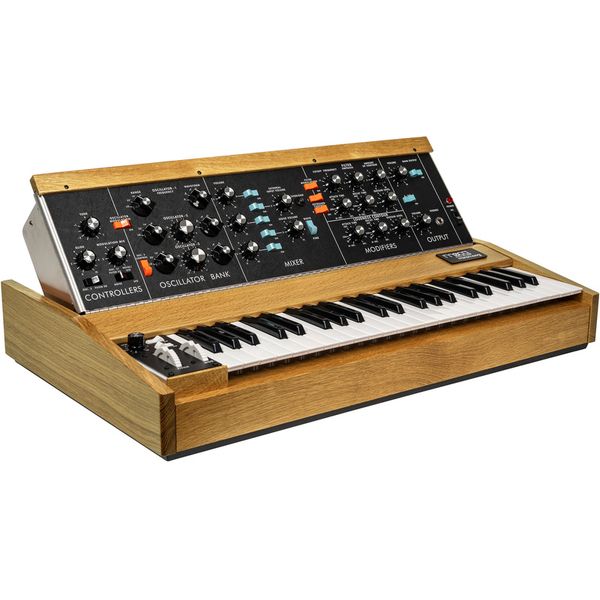

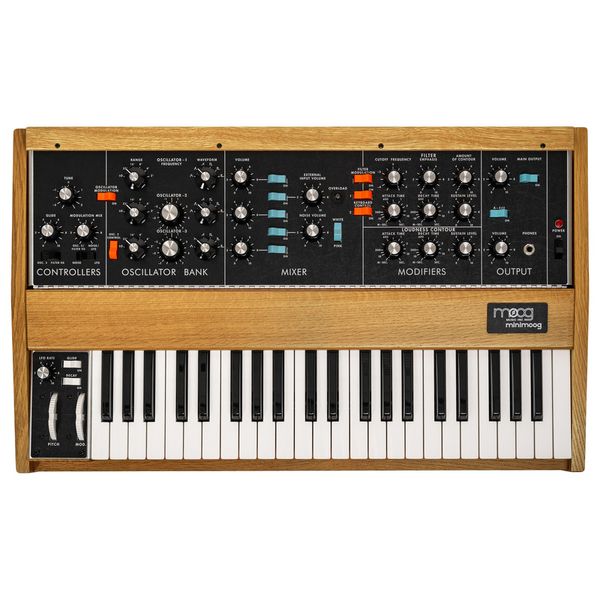

Moog Minimoog Bob Moog Tribute Ed.
Monophonic Analogue Synthesizer
- Limited special edition with oak housing
- 44-key fatar keyboard
- Pitch and modulation wheel
- Sound sources: 3 oscillators, noise generator (pink/white) and external audio input
- Oscillators: Triangle, Triangle-Sawtooth (Oscillator 1, Oscillator 2), Inverted Sawtooth (Oscillator 3), Sawtooth, Square, Wide Pulse and Narrow Pulse
- LFO waveform: triangle, square
- Ladder filter
- Dimensions (W × H × D): 728 × 155 × 439 mm
- Weight: 14.2 kg
- Includes Minimoog Model D SR series soft case

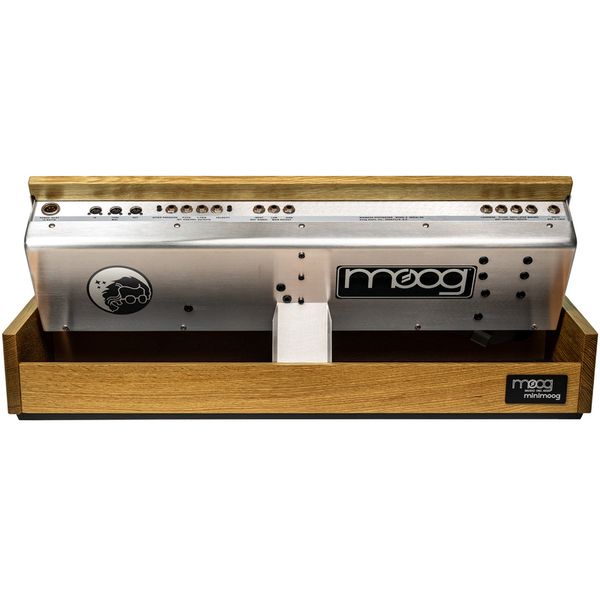

Connections:
- 2 x Line outputs: 6.3 mm jack
- 1 x Line input: 6.3 mm jack
- 5 V trigger input: 6.3 mm jack
- After pressure CV output: 6.3 mm jack
- Pitch CV output: 6.3 mm jack
- Gate output: 6.3 mm jack
- Velocity output: 6.3 mm jack
- Loudness CV input: 6.3 mm jack
- Filter cutoff input: 6.3 mm jack
- Oscillator pitch input: 6.3 mm jack
- Modulation source input: 6.3 mm jack
- MIDI input and output: 5-pin DIN
-
Numer artykułu 640338
-
Jednostka sprzedaży 1 szt.
-
Number Of Keys 44
-
Touch-Sensitive Yes
-
Aftertouch Yes
-
Split Zones No
-
Modulation Wheel Yes
-
Number of simultaneous Voices 1
-
Sound Engine Analogue
-
MIDI interface 1x In, 1x Out, 1x Thru
-
Storage Medium None
-
USB-port No
-
Effects None
-
Arpeggiator No
-
Number of Analog Outputs 2
-
Digital Output No
-
Display No
-
Pedal Connections None
-
Dimensions 728 x 155 x 439 mm
-
Weight 14,2 kg
-
